Adchem 33M7H Acrylic Double-Coated Tape
Asset Description: Adchem 33M7H Acrylic Double-Coated Tape provides excellent performance over a wide temperature range when used for applications such as gasket assembly and mounting nameplates, decals, and plastic trim.
Image:

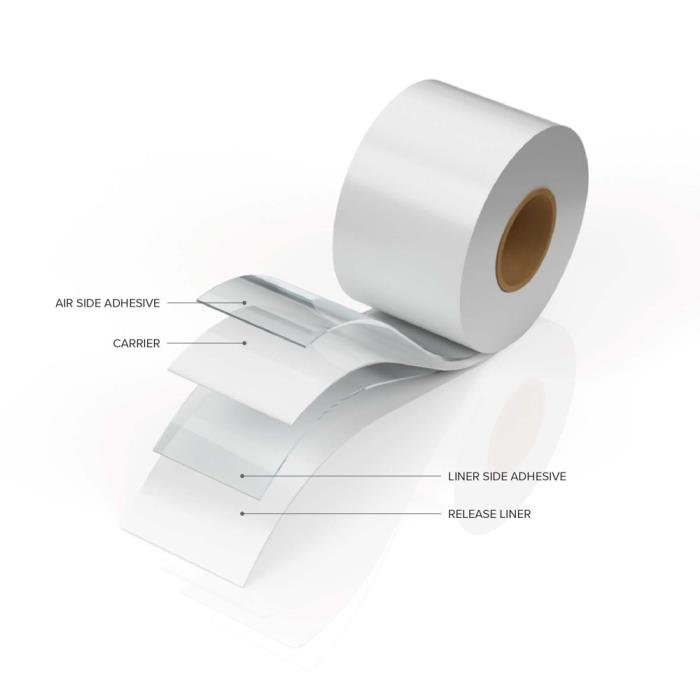

Product Construction: Double-Coated Tape
Product Use: Gasket assembly. Mounting nameplates, decals, and plastic trim. Laminating paper, felt, sponge rubber, foam, and plastics.
Benefits: - Polyester Film Carrier
- Support for aid in processing and application
- Conformable
- Acrylic Adhesive
- Excellent anchorage to foams and plastics
- Excellent performance over a wide temperature range
- Humidity and plasticizer migration resistant
- 76lb Semi-bleached Kraft Liner
- Easy to die-cut and process
PDF: TDSAdchem33M7H_081922.pdfDebug Array
Array
(
[data] =>Array
(
[0] => Array
(
[product_id] => 1090
[product_assets_id] => 13179990
[product_l2_name] => Tapes
[product_l2_url] => tapes
[product_assets_parent] => [product_assets_parent_name] =>
[product_assets_name] => Adchem+33M7H+Acrylic+Double-Coated+Tape
[product_assets_url] => adchem-33m7h-acrylic-double-coated-tape
[product_assets_type] => 16
[product_assets_order] => 0
[product_assets_datemodified] => 25%2F10%2F2023+15%3A35%3A12
[product_assets_datecreated] => 23%2F02%2F2021+13%3A41%3A39
[product_comp_id] => 2401
[product_comp_name] => Berry+Global
[product_comp_portalurl] =>
[product_comp_contacturl] =>
[product_assets_description] => Adchem+33M7H+Acrylic+Double-Coated+Tape+provides+excellent+performance+over+a+wide+temperature+range+when+used+for+applications+such+as+gasket+assembly+and+mounting+nameplates%2C+decals%2C+and+plastic+trim.
[product_image_url] => %2FUp%2FComp%2F2401%2F13212159%2F13179990-NSZNNRGH%2Fi%2Fprev%2F13198671.jpeg
[product_data_csv] =>
[product_data_csv_url] =>
[field_groups] => Array
(
[standardized_name] => Adchem+33M7H+Acrylic+Double-Coated+Tape
[berry_global_entity] => HHS+Tape
[products] => Assembly+%26+Attachment+Tape
[brands] => Adchem
[brand_url] => http%3A%2F%2Fadchem.com%2Fmain%2Fhome.aspx
[markets] => Custom+Converting
[capabilities] => Tapes+Manufacturing
[country_serviced_available_in] => Global
[features_benefits] => %3Cul%3E%0D%0A%3Cli%3EPolyester+Film+Carrier%0D%0A%3Cul%3E%0D%0A%3Cli%3ESupport+for+aid+in+processing+and+application%3C%2Fli%3E%0D%0A%3Cli%3EConformable%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3C%2Fli%3E%0D%0A%3Cli%3EAcrylic+Adhesive%0D%0A%3Cul%3E%0D%0A%3Cli%3EExcellent+anchorage+to+foams+and+plastics%3C%2Fli%3E%0D%0A%3Cli%3EExcellent+performance+over+a+wide+temperature+range%3C%2Fli%3E%0D%0A%3Cli%3EHumidity+and+plasticizer+migration+resistant%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3C%2Fli%3E%0D%0A%3Cli%3E76lb+Semi-bleached+Kraft+Liner%0D%0A%3Cul%3E%0D%0A%3Cli%3EEasy+to+die-cut+and+process%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3C%2Fli%3E%0D%0A%3C%2Ful%3E
[end_use_recommended_applications] => Gasket+assembly.+Mounting+nameplates%2C+decals%2C+and+plastic+trim.+Laminating+paper%2C+felt%2C+sponge+rubber%2C+foam%2C+and+plastics.
[berry_catalog_sku] => 33M7H
[sample_request_available] => No
[product_construction] => Double-Coated+Tape
[max_temp_range] => 212-257+%C2%B0F
[gauge_mil] => 9.9+mil
[gauge%252fthickness_range] => 9.1+mils+to+13.0+mils
[carrier_support_facestock] => PET+%28Polyester%29+Film
[carrier_thickness_%2528mil%2529] => 0.5+mil
[adhesive_type] => Acrylic
[air-side_adhesive_thickness_%2528mil%2529] => 1.9+mil
[adhesive_type_%2528liner_side%2529] => Acrylic
[liner_side_adhesive_thickness_%2528mil%2529] => 1.9+mil
[liner_type] => Paper
[peel_strength_adhesion_to_steel] => 110+oz%2Fin
[peel_strength_adhesion_to_steel_%2528liner_side%2529] => 120+oz%2Fin
[shear_strength_%2528air_side%2529] => %3E24+hours
[shear_strength_%2528liner_side%2529] => %3E24+hours
[operating_temp_range] => 50+to+150+%C2%B0F
[laminating_temp_range] => 50+to+150+%C2%B0F
)
[images] => Array
(
[0] => Array
(
[image_product_id] => 1090
[image_is_main] => yes
[image_name] => 13198671.jpeg
)
)
[files] => Array
(
[0] => Array
(
[file_id] => 97
[file_section] => files
[file_name] => TDSAdchem33M7H_081922.pdf
[file_url] => tdsadchem33m7h-081922.pdf
[file_product] => 1090
[file_tags] =>
)
)
)
)
[recordcount] => 1
)
