Adchem EBTB Double-Coated Tape
Asset Description: A 1/32" thick black, 6 lb. density cross linked polyethylene foam coated on both sides with a high performance acrylic adhesive system developed specifically for extreme environmental exposures that does not require silane/isopropanol pre-treatment for adhesion to glass or ceramic surfaces.
Provide for long-term indoor and outdoor bonding of glass, ceramics, primed, painted, aluminum and plastic surfaces without silane/isopropanol pre- wash. The double-coated tape was engineered specifically for resistance to air, water, detergents, moisture, light and dust penetration. Foam is also used to fill any irregularities and functionally provide cushioning, absorb vibration and shock, and allow for expansion and contraction due to temperature variations. See associated sheets for specific testing and performance data.
Image:

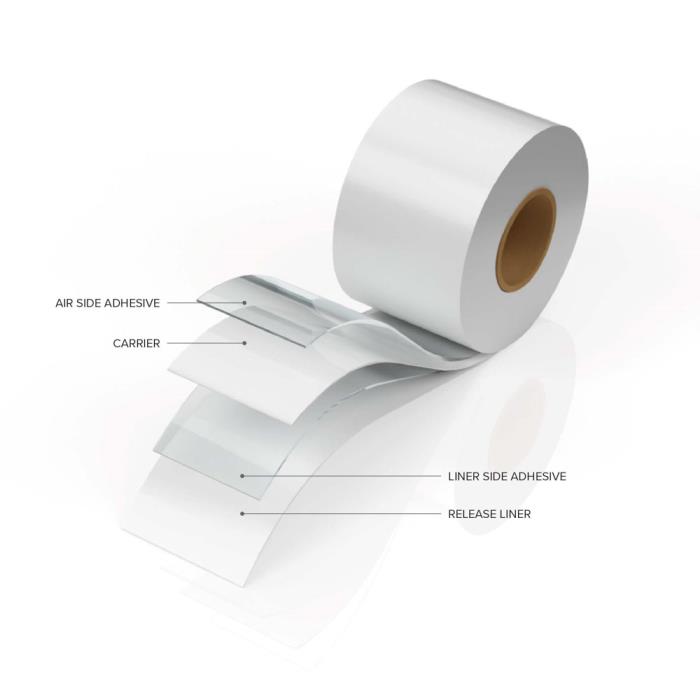

Product Construction: Double-Coated Tape
Product Use: Provide for long-term indoor and outdoor bonding of glass, ceramics, primed, painted, aluminum and plastic surfaces without silane/isopropanol pre- wash. The double-coated tape was engineered specifically for resistance to air, water, detergents, moisture, light and dust penetration. Foam is also used to fill any irregularities and functionally provide cushioning, absorb vibration and shock, and allow for expansion and contraction due to temperature variations.
Benefits: - Designed for extreme environmental exposure
- Moderate shear strength
- Excellent UV resistance
- Excellent adhesion to glass
- No pre-wash required
- Conformable and allows for expansion and contraction with temperature variations
- Resistant to air, water, and detergents
- 74# Polycoated Kraft Liner
- Conformable and good dimensional stability
PDF: TDSAdchemGMC_081922.pdfDebug Array
Array
(
[data] =>Array
(
[0] => Array
(
[product_id] => 6623
[product_assets_id] => 14132140
[product_l2_name] => Tapes
[product_l2_url] => tapes
[product_assets_parent] => [product_assets_parent_name] =>
[product_assets_name] => Adchem+EBTB+Double-Coated+Tape
[product_assets_url] => adchem-ebtb-double-coated-tape
[product_assets_type] => 16
[product_assets_order] => 0
[product_assets_datemodified] => 29%2F05%2F2024+17%3A41%3A38
[product_assets_datecreated] => 29%2F05%2F2024+00%3A00%3A00
[product_comp_id] => 2401
[product_comp_name] => Berry+Global
[product_comp_portalurl] =>
[product_comp_contacturl] =>
[product_assets_description] => A+1%2F32%22+thick+black%2C+6+lb.+density+cross+linked+polyethylene+foam+coated+on+both+sides+with+a+high+performance+acrylic+adhesive+system+developed+specifically+for+extreme+environmental+exposures+that+does+not+require+silane%2Fisopropanol+pre-treatment+for+adhesion+to+glass+or+ceramic+surfaces.%0D%0AProvide+for+long-term+indoor+and+outdoor+bonding+of+glass%2C+ceramics%2C+primed%2C+painted%2C+aluminum+and+plastic+surfaces+without+silane%2Fisopropanol+pre-+wash.+The+double-coated+tape+was+engineered+specifically+for+resistance+to+air%2C+water%2C+detergents%2C+moisture%2C+light+and+dust+penetration.+Foam+is+also+used+to+fill+any+irregularities+and+functionally+provide+cushioning%2C+absorb+vibration+and+shock%2C+and+allow+for+expansion+and+contraction+due+to+temperature+variations.+See+associated+sheets+for+specific+testing+and+performance+data.
[product_image_url] => %2FUp%2FComp%2F2401%2F13212159%2F14132140-TOEQBONM%2Fi%2Fprev%2F13198735.jpeg
[product_data_csv] =>
[product_data_csv_url] =>
[field_groups] => Array
(
[standardized_name] => Adchem+EBTB+Double-Coated+Tape
[berry_global_entity] => HHS+Tape
[products] => Graphics+%26+Graphics+Protection+Tape
[brands] => Adchem
[brand_url] => http%3A%2F%2Fadchem.com
[markets] => Custom+Converting
[capabilities] => Tapes+Manufacturing
[country_serviced_available_in] => Global
[features_benefits] => %3Cul%3E%0D%0A%3Cli%3EAcrylic+Adhesive%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3Cul+style%3D%22list-style-type%3A+circle%3B%22%3E%0D%0A%3Cli%3EDesigned+for+extreme+environmental+exposure%3C%2Fli%3E%0D%0A%3Cli%3EModerate+shear+strength%3C%2Fli%3E%0D%0A%3Cli%3EExcellent+UV+resistance%3C%2Fli%3E%0D%0A%3Cli%3EExcellent+adhesion+to+glass%3C%2Fli%3E%0D%0A%3Cli%3ENo+pre-wash+required%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3Cul%3E%0D%0A%3Cli%3EFoam+Carrier%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3Cul+style%3D%22list-style-type%3A+circle%3B%22%3E%0D%0A%3Cli%3EConformable+and+allows+for+expansion+and+contraction+with+temperature+variations%3C%2Fli%3E%0D%0A%3Cli%3EResistant+to+air%2C+water%2C+and+detergents%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3Cul%3E%0D%0A%3Cli%3E%26nbsp%3B74%23+Polycoated+Kraft+Liner%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3Cul+style%3D%22list-style-type%3A+circle%3B%22%3E%0D%0A%3Cli%3EConformable+and+good+dimensional+stability%3C%2Fli%3E%0D%0A%3C%2Ful%3E%0D%0A%3Cp%3E%26nbsp%3B%3C%2Fp%3E
[end_use_recommended_applications] => Provide+for+long-term+indoor+and+outdoor+bonding+of+glass%2C+ceramics%2C+primed%2C+painted%2C+aluminum+and+plastic+surfaces+without+silane%2Fisopropanol+pre-+wash.+The+double-coated+tape+was+engineered+specifically+for+resistance+to+air%2C+water%2C+detergents%2C+moisture%2C+light+and+dust+penetration.+Foam+is+also+used+to+fill+any+irregularities+and+functionally+provide+cushioning%2C+absorb+vibration+and+shock%2C+and+allow+for+expansion+and+contraction+due+to+temperature+variations.
[berry_catalog_sku] => EBTB
[sample_request_available] => No
[product_construction] => Double-Coated+Tape
[max_temp_range] => 212-257+%C2%B0F
[gauge_mil] => 40.8+MILS
[carrier_support_facestock] => Foam
[adhesive_type] => Acrylic
[air-side_adhesive_thickness_%2528mil%2529] => 2.0
[adhesive_type_%2528liner_side%2529] => Acrylic
[liner_side_adhesive_thickness_%2528mil%2529] => 2.0
[liner_type] => Coated+Kraft+Paper
[operating_temp_range] => -30+to+220+%C2%B0F
[laminating_substrate] => Polyurethane-Ester+Foam
)
